Additional Information

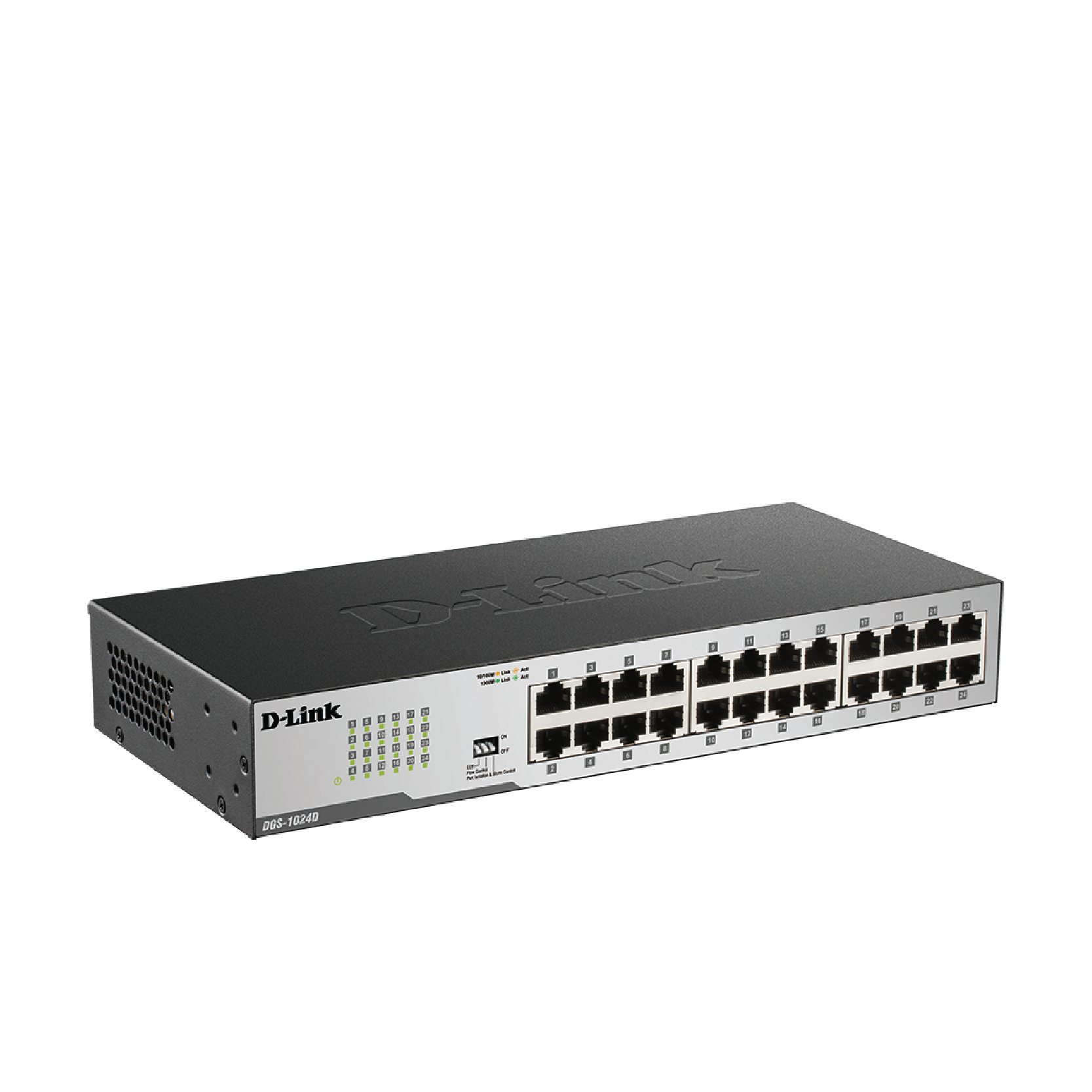

• Part Number: DGS-1024D
• Cable diagnostics troubleshooting
• 3-pin front panel DIP switch for real-time toggling Energy-efficient Ethernet (EEE), Flow Control, Port Isolation, and Storm Control
• Compact and durable housing, high port count, and fanless design for noise-free operation
• MAC Address Table Size:
  • 8K
  Switch Fabric:
  • 48Gbps Forwarding Capacity
  Transmission Method:
  • Store-and-Forward
  Diagnostic LEDs:
  • Per Unit: Power
  • Per Port: Activity/Link, Speed
  Packet Buffer Memory:
  • On ship: 500KB Buffer Memory per Device
  Max Power Consumption:
  • 26.7 Watts

  QoS:

  • 802.1p (4 Queues)
  Interface Options:
  RJ-45:
  • 10BASE-T, 100BASE-TX & 1000BASE-T
  Network Protocol and Standards:
  EEE:
  • 802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control, 802.3ab Gigabit Ethernet, 802.1p Priority Queuing
  Electrical & Emissions Summary:
  Emissions:
  • FCC Class A, CE Class A

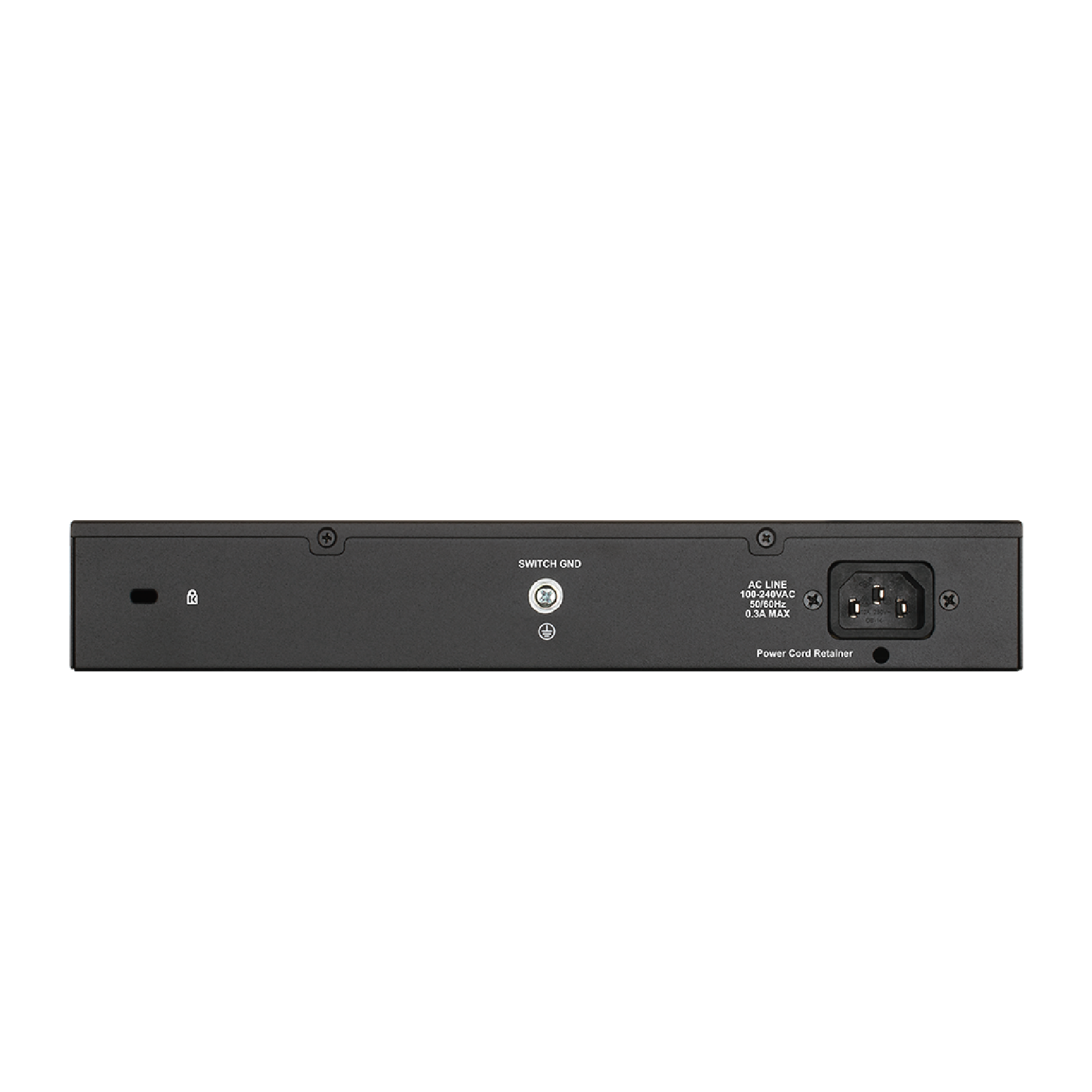

  Power Supply:
  • 100-240VAC, 50/60 Hz Internal Universal Power
  Environmental:
  • RoHS Compliant
  Safety and Environmental:
  Safety:
  • CSA + NRTL/C
  Temperature:
  • Operating: 32° to 104°F (0° to 40°C)
  • Storage: 14° to 131°F (-10° to 55°C)
  Humidity:
  • Operating: 5% to 95% RH (Non-Condensing)
  Physical Specifications:
  Dimensions (W x D x H):
  • 11.0in x 7.1in x 1.7in (280mm x 180mm x 44mm)
  Weight:
  • 4.0lbs (1.8Kg)
  • Warranty:  1 Year on part.
